The data loggers can be used for various applications within the life science and food & beverage industries.
When used with our High Range Conductivity and Temperature Sensor, the following application(s) are covered:
Measures Relative Humidity
Hanwell IceSpy IN-HUM-V2 RH/T Sensor
Temperature and Humidity Sensor
Our temperature and humidity sensor is for use with Hanwell IceSpy RH/T transmitters. 13mm x 54mm.
Related Products
Key Features and Benefits
Easy to fit to Hanwell IceSpy units
Reliable and durable
Accurate readings
Can be calibrated to suit many applications
Specifications:
Humidity sensor details
Recommended range:
0-100% RH non condensing
Accuracy:
+/- 3% RH
Temperature Sensor details (Band gap internal with RH)
Temperature operating range:
-30°C to +50°
Accuracy:
See Chart

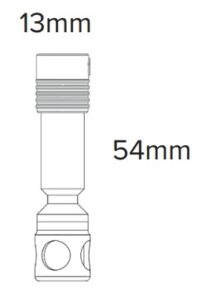

Dimensions:
The Hanwell EMS Software
The Hanwell environmental monitoring software (EMS) can be used with Hanwell Pro and Hanwell IceSpy hardware to provide a secure and flexible tool for comprehensive data collection, analysis and immediate alarm notification.
Validatable software
Specifically for the pharmaceutical sectors, we provide comprehensive IQ and OQ protocols and custom protocols, where required. Trained engineers and distributors are available for smooth validation protocol execution.
EMS assists with national regulatory compliance requirements
GxP Guidelines, HACCP, FDA 21 CFR Part 11, EU GMP Annex 11, and ISO 22000 food standards
Highlighted Features
One software platform for all Ellab equipment
Combine TrackSense data loggers and the E-Val Pro wired thermocouple system in the same session
Automatic PDF report generation with clear pass/fail indication
Can run from a stand-alone PC or networked
Suitable Applications
Life Science
Washer Disinfector
Washer/disinfectors are used in medical, as well as pharmaceutical applications, to either prepare goods for future autoclaving.
For example surgery instruments to remove residues such as blood and protein or to disinfect (semi sterilize) goods for later use.
Ellab Applications
Ellab provides a wide range of diverse products and solutions for most applications, all around the world.
See all applicationsSuitable Accessories
Ellab offers a wide range of customizable fittings and essential accessories for processes and studies within different industries. By using one of our unique fittings, loggers can be applied to hard-to-reach areas, cold spots and other critical measuring points.
When used with our High Range Conductivity and Temperature Sensor, the following application(s) are covered:
Multi Reader Station
The TrackSense Pro Multi Reader Station is what starts, stops and reads Ellab’s data loggers. The light module can hold up to 4 data loggers at a time, or be extended through expansion modules to read 16 data loggers simultaneously.
The reader stations can be connected directly to the PC via USB or connect to larger-scale IT systems through the LAN connection, easily providing quick information and analysis wherever necessary.
Single Reader Station
The TrackSense Pro Single Reader Station allows for a simple and quick way of starting, stopping and reading data loggers.
The reader station can easily be connected directly to a PC, providing fast transfer of data to generate advanced analysis and reports
SKY Real-time Data Module
The SKY module is a easy plug-and-play real-time data module that allows TrackSense Pro and TrackSense Lab data loggers to transmit live data through wireless transmission.
Whether it is within sealed rooms or hostile environments, the SKY module will effortlessly continue transmitting valuable data.
TrackSense Pro Standard Battery
Ellab offers various high-end batteries for our wide range of wireless data loggers.
The Standard Battery is used for most of the TrackSense data logger sizes and can be stored for up to 10 years and activated whenever needed using the activator unit.
Ellab Accessories
Ellab offers a wide range of customizable fittings and essential accessories for processes and studies within different industries.
See all AccessoriesDownloads and Related Articles
Our EMS video shows how our comprehensive solutions work
